Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen

Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen

Transflective LCD screen Tft Lcd

240*320 Spi Mcu interface Tft Lcd

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028BFT01-40

Contact Us

Request A Quote
Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen
Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen
Product Details
Size (inch):
2.8
Resolution:
240*320
Brightness (cd/m²):
300 Nit
Display Area:
43.20(H)x57.60(V)mm
Interface:
MCU 8/16bit SPI 3wire/4wire
Driver Ic:
ST7789T3
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
RELATED PRODUCTS
Good price Polcd IPS 268x800 ST7701S High Brightness 700nits 3.0 inch TFT LCD Screen LCD Display online Video

Polcd IPS 268x800 ST7701S High Brightness 700nits 3.0 inch TFT LCD Screen LCD Display

Get Best Price
Good price Polcd 3.5 inch 320x240 Full Color TFT Display ST7272A drive ic IPS View Angle 54pin LCD Display online Video

Polcd 3.5 inch 320x240 Full Color TFT Display ST7272A drive ic IPS View Angle 54pin LCD Display

Get Best Price
Good price Polcd 4.3 Inch IPS TFT Screen 480*800 RGB Interface ST7701S Driver Ic LCD Display Module For Industrial online Video

Polcd 4.3 Inch IPS TFT Screen 480*800 RGB Interface ST7701S Driver Ic LCD Display Module For Industrial

Get Best Price
Good price Polcd 450 Nit 3.5 Tft Display 16 Bit 320X 480 LCD Touch Panel RoHS online Video

Polcd 450 Nit 3.5 Tft Display 16 Bit 320X 480 LCD Touch Panel RoHS

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

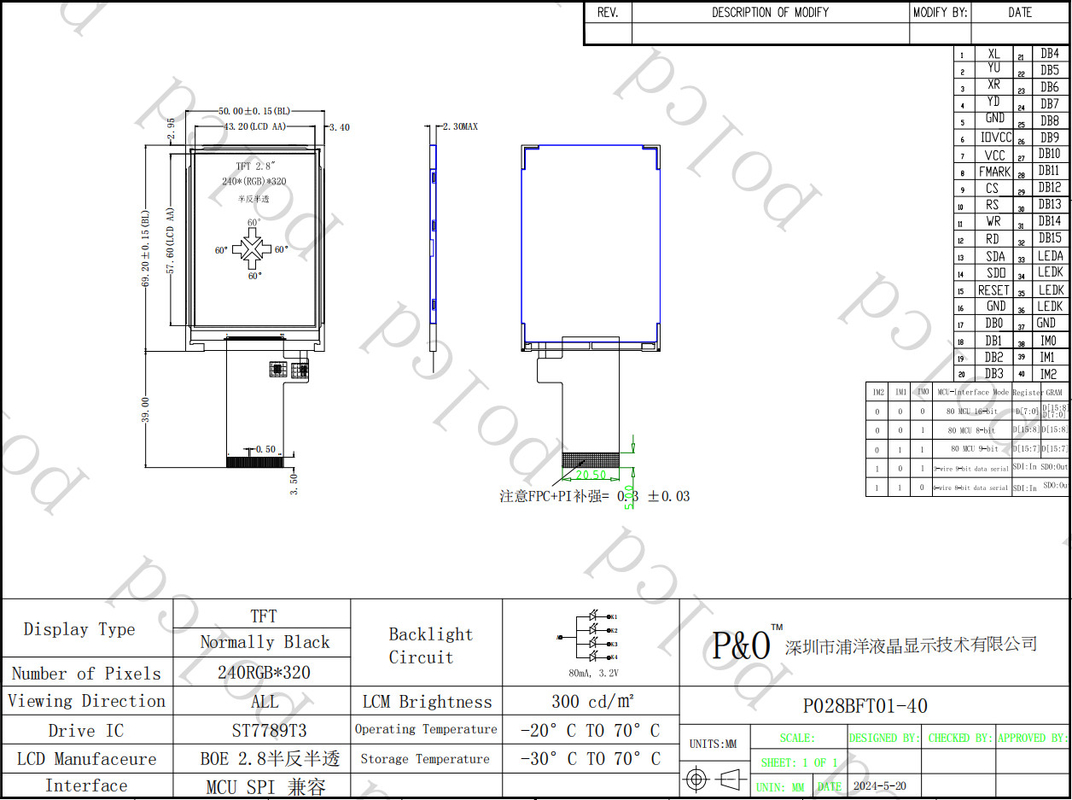

Parameter:

Model P028BFT01-40
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.06(H)x0.18(V)mm
Pin 20 pin
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White

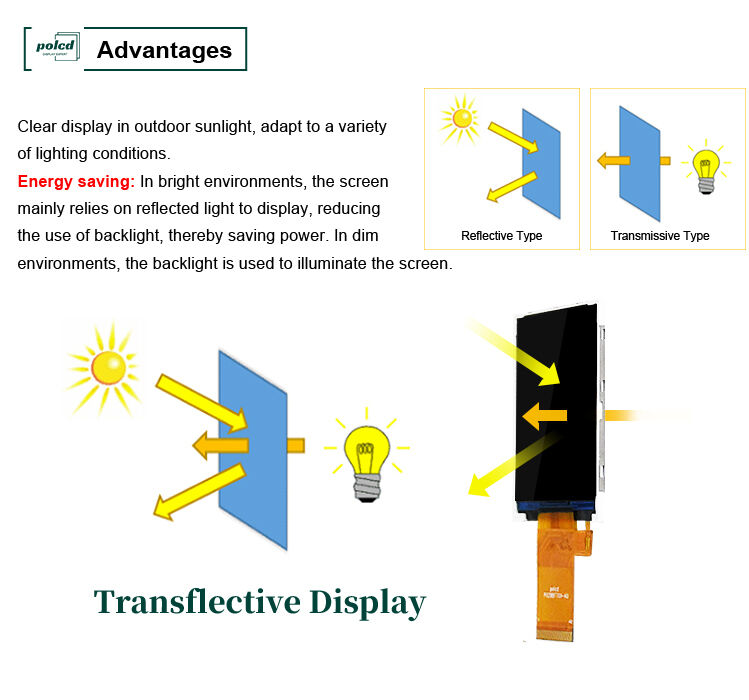

Viewing Direction(eye) Transflective
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 500:1
Interface MCU 8/16bit SPI 3wire/4wire
Back-light 4*LED Parallel type
Drive IC ST7789T3
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen 0Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen 1Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen 2
