Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P035B084-IPS
Contact Us
Video
Video

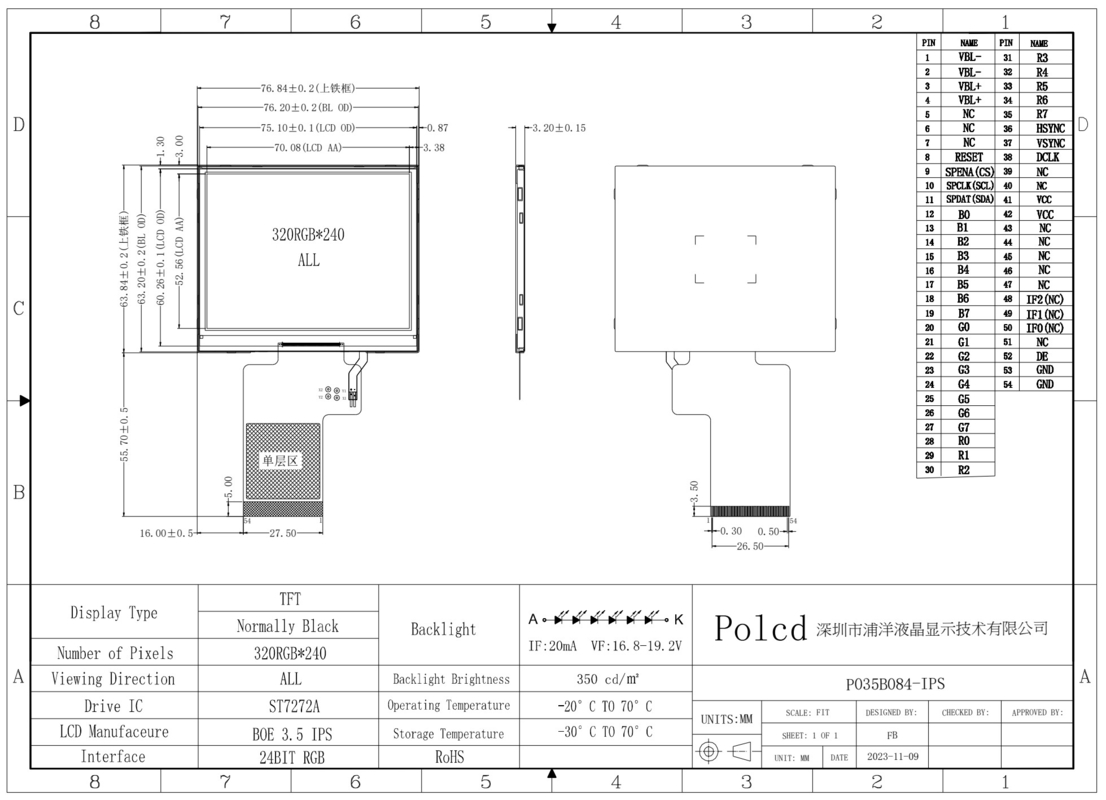

Parameter:
| Model | P035B084-IPS |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x240(V) |
| Display area | 70.08(H)x52.56(V)mm |
| Pixel pitch | 0.073(H)x0.219(V)mm |
| Pins | 54 pins |
| Outline Dimension | 76.84x63.84x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 16.7M |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 1200:1 |
| Interface | 3Line_SPI_24BIT_RGB |
| Back-light | LED Side-light type |
| Drive IC | ST7272A |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
