Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P128H002-IPS-CTP
Contact Us
Video
Video
Parameter:
| Model | P128H002-IPS-CTP |
| Screen Size | 1.28 inch |
| Number of Pixel | 240RGB(H)x240(V) |
| Display area | 32.40(H)x32.40(V)mm |
| Pixel pitch | 0.135(H)x0.135(V)mm |
| Pin | 15 pin |

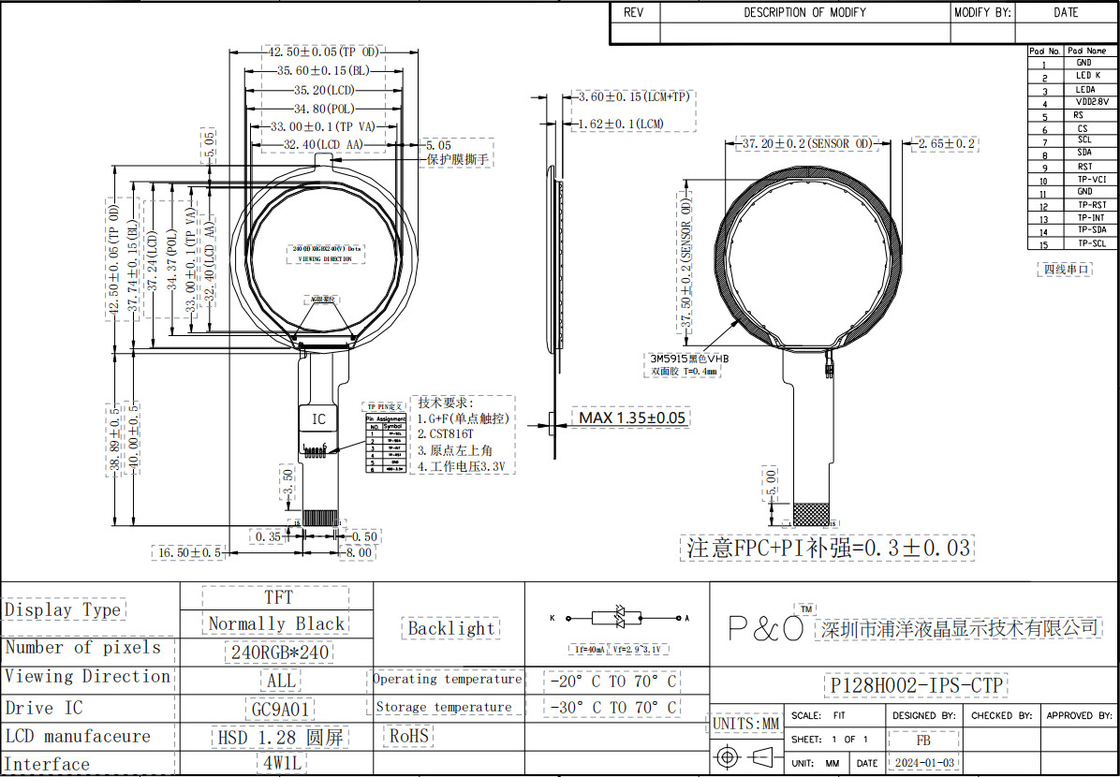

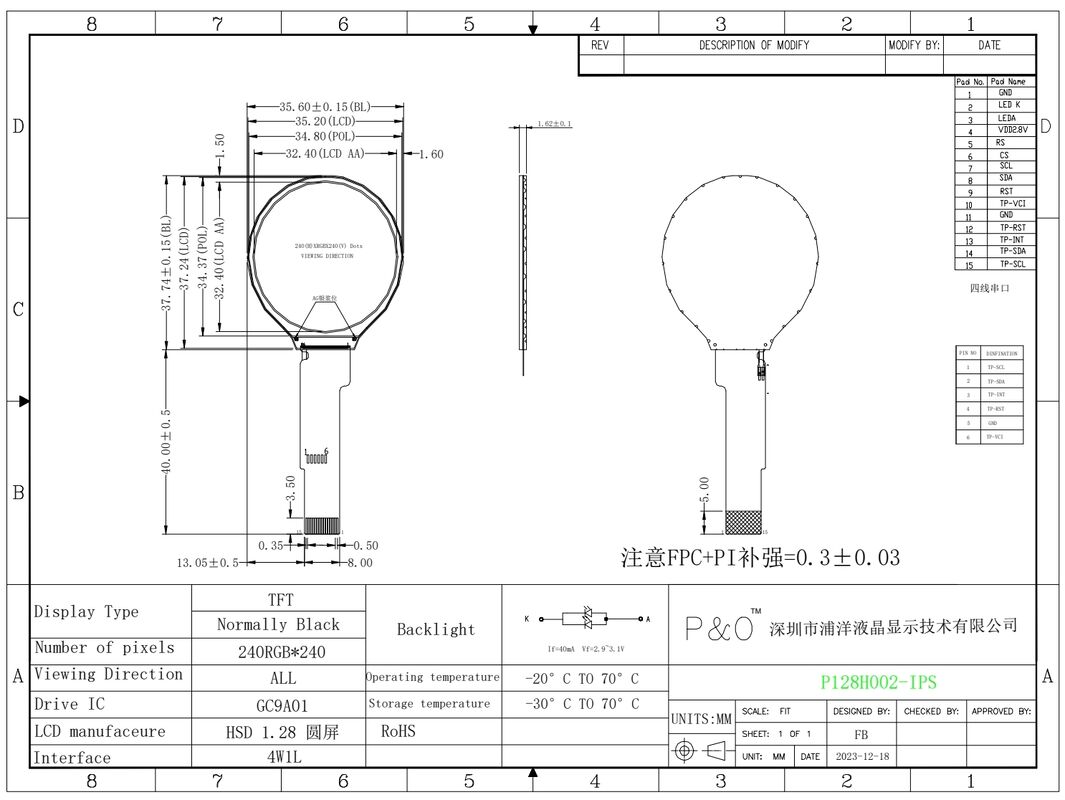

| Outline Dimension | 42.50x42.50x3.60mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1100:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| LCM Drive IC | GC9A01 |
| CTP Drive IC | GST816T |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
