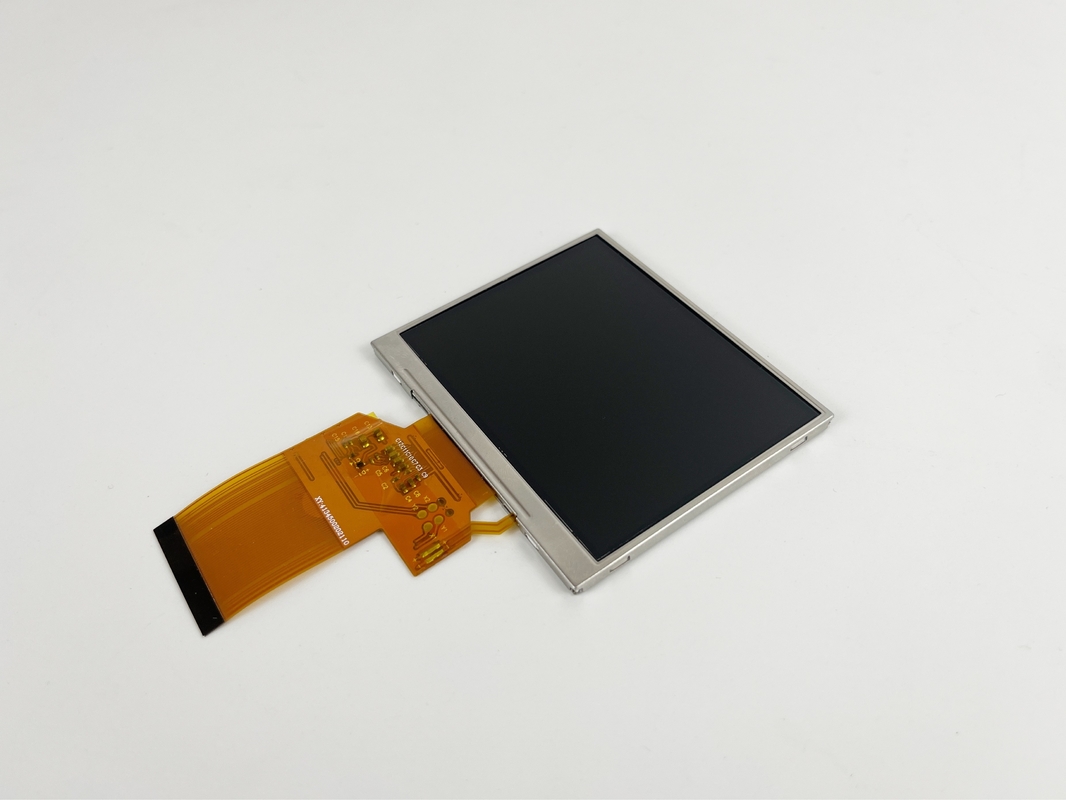

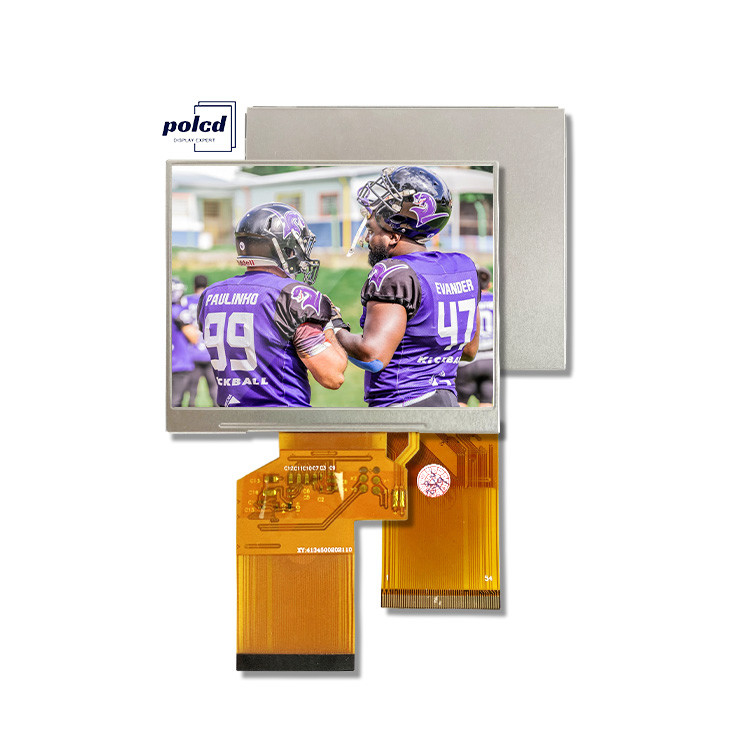

Polcd LQ035NC111 3.5 inch Original TFT Panel LCD Display Module 320x240 Resolution Square LCD Screen
TFT Display Description:
A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle provides clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels.
Parameter:
| Product name | TFT LCD |
| Diagonal size | 3.5 inch |
| Model | LQ035NC111 |
| Type | TFT-LCD, liquid crystal module |
| Resolution | 320(RGB)x240 QVGA 115PPI |
| Display area | 70.08(H)x52.56(V) mm ; |
| Open area | 73.03(H)x55.50(V) mm |
| Display brightness | 300 cd/m2 (Typ.) |
| Pixel arrangement | RGB vertical bars |

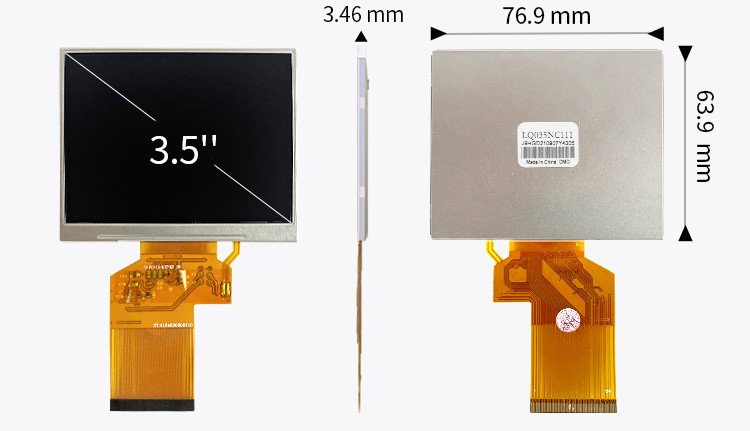

| Physical dimension | 76.9(H)x63.9(V) x3.46(T) mm |
| Surface treatment | Haze (Haze 20%) |
| Contrast | 400:1 (Typ.) (Transmission) |
| Response time | 10/15 (Typ.)(Tr/Td) ms |
| Display mode | TN, normally white display, transmissive |
| Recommended viewing angle | 6 o'clock |
| Viewing angle | 60/60/50/55 (Typ.) (CR210) |
| Color support | 16.7M , 60% NTSC |
| Weight | 30.0g (Typ.) |
| Frame rate | 60Hz |
| Interface Type | 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Operating temperature: -20~ 70 °C; Storage temperature: -30~ 80 °C |
| Type of light source | WLED [6S1P], 10K hours, no driver |
| Touch technology | No; supports custom touch |
Advantages
A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle has several product advantages. Firstly, it offers a high resolution and excellent color performance, providing users with a clear and vibrant display. Secondly, its RGB interface enables easy integration with various display controllers, making it compatible with a wide range of devices. Thirdly, its 6 o'clock direction viewing angle ensures clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels. Additionally, it is a low-power consumption display, making it ideal for use in portable devices with limited battery life. Finally, its compact size and lightweight design make it easy to integrate into different applications, making it an attractive display option for manufacturers.
