Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:

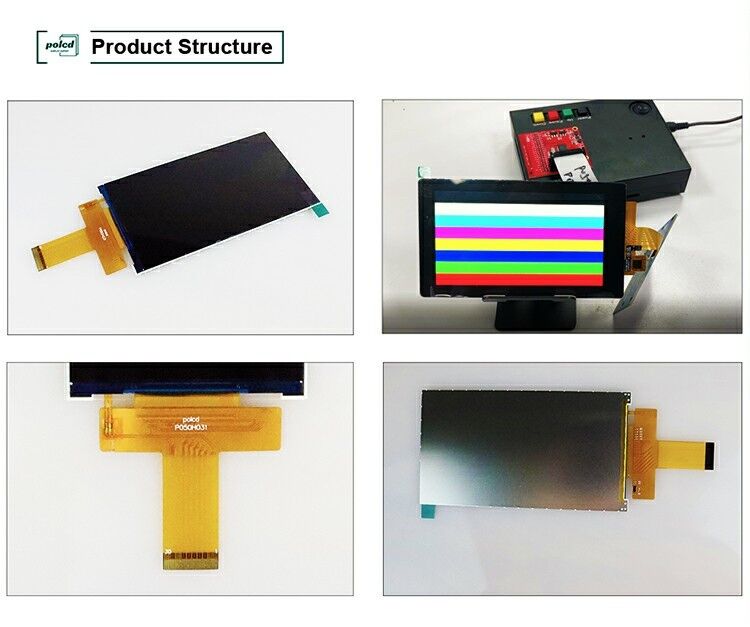

P050H031-IPS
Contact Us
Video
Parameter:
| Item | Specification |
| Model | P050H031-IPS |
| Screen Size | 5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Display area | 62.10(H)x110.40(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |
| Pins | 30 pins |

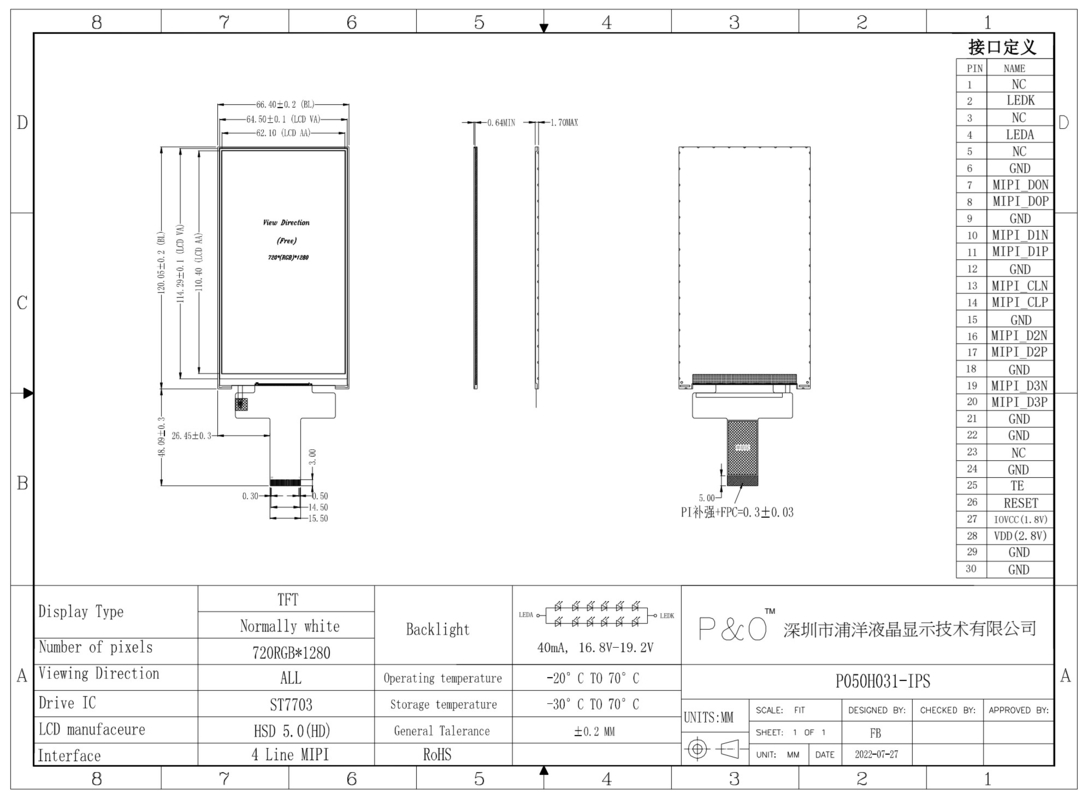

| Outline Dimension | 66.40x120.05x1.70mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 400 nit |
| Contrast Ratio | 800:1 |
| Surface treatment | -- |
| Interface | MIPI |
| Back-light | LED Side-light type |
| Drive IC | ST7703 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
