Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P055H020-V2-IPS-CTP
Contact Us
Video
Parameter:

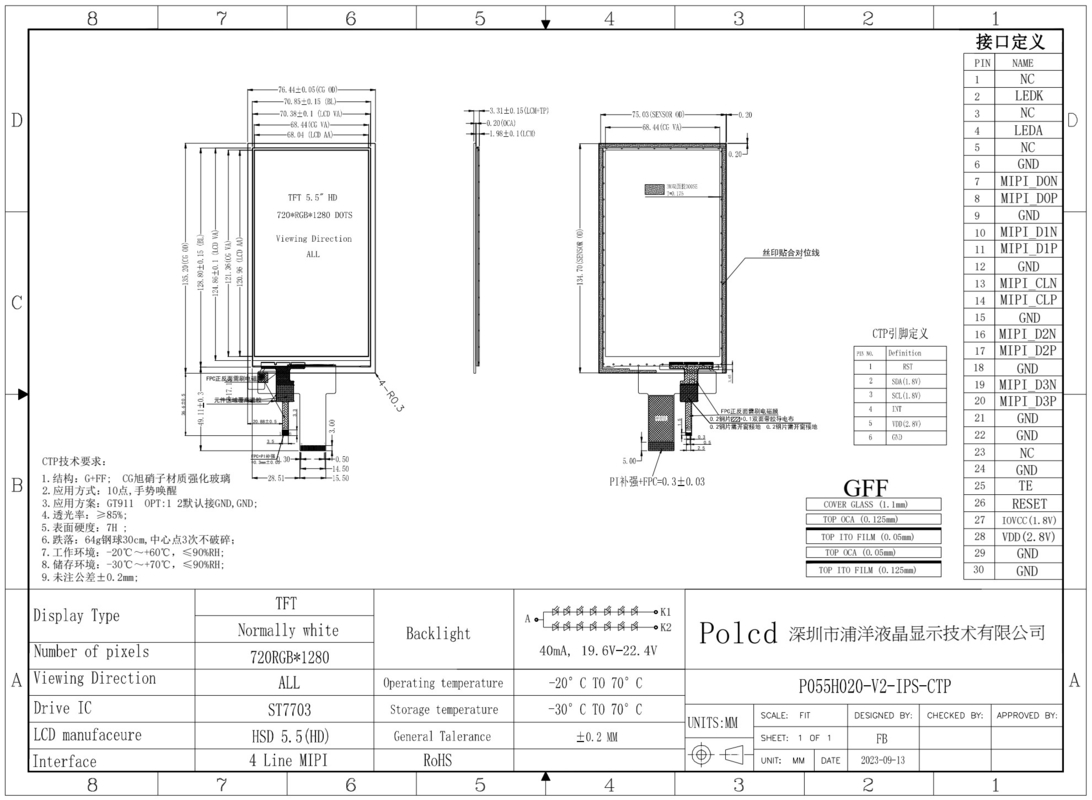

| Model | P055H020-V2-IPS-CTP |
| Screen Size | 5.5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Pin | 30 pin |
| Display area | 68.04(H)x120.96(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |
| Outline Dimension | 76.44x135.20x3.31mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | MIPI |
| Back-light | LED Side-light type |
| LCM IC | ST7703 |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |
